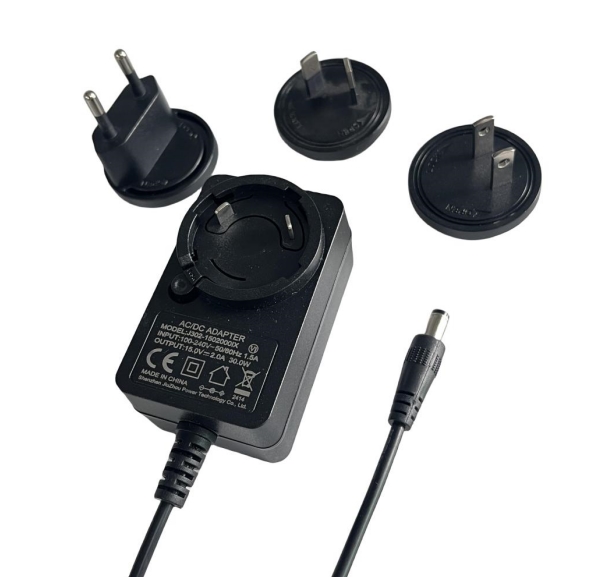

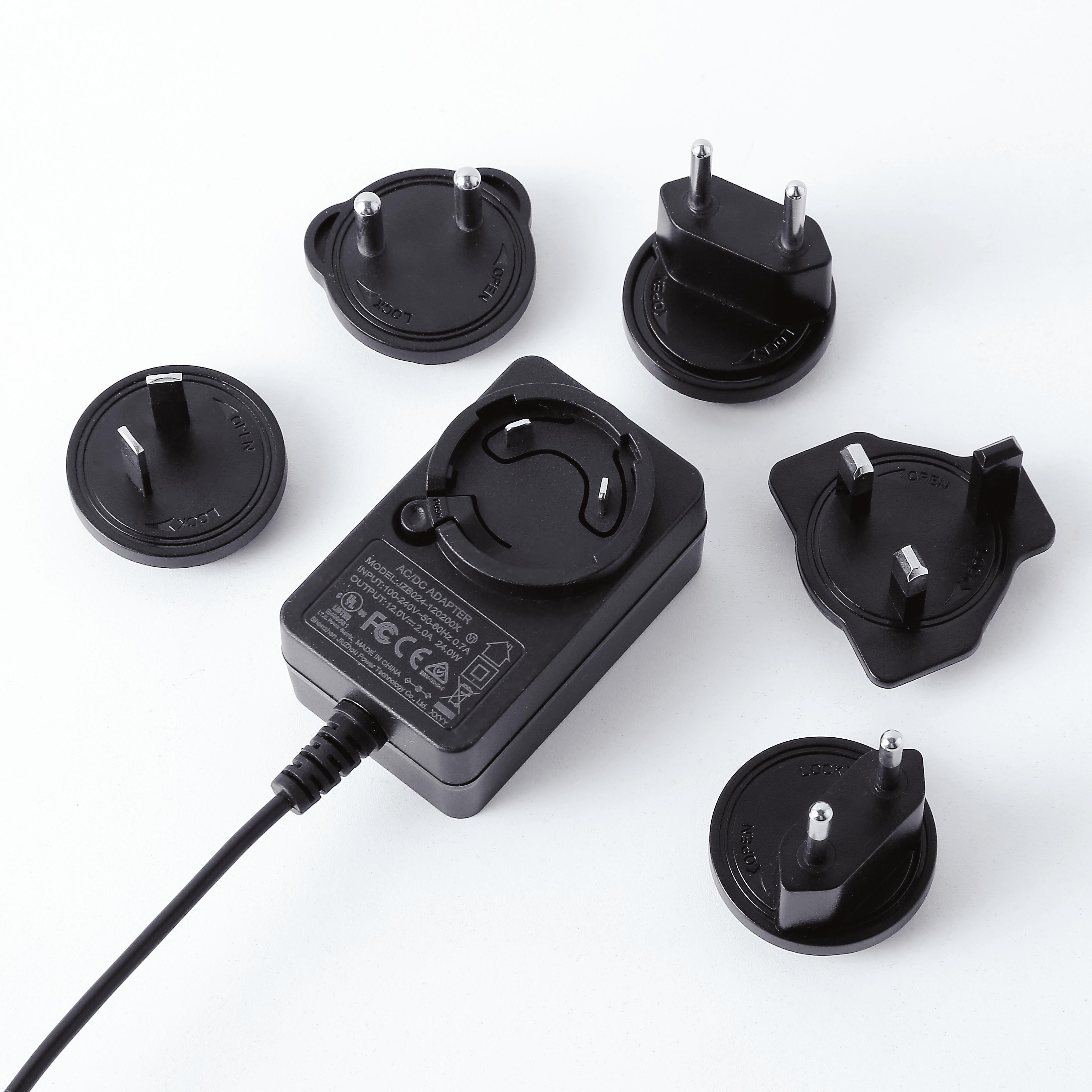

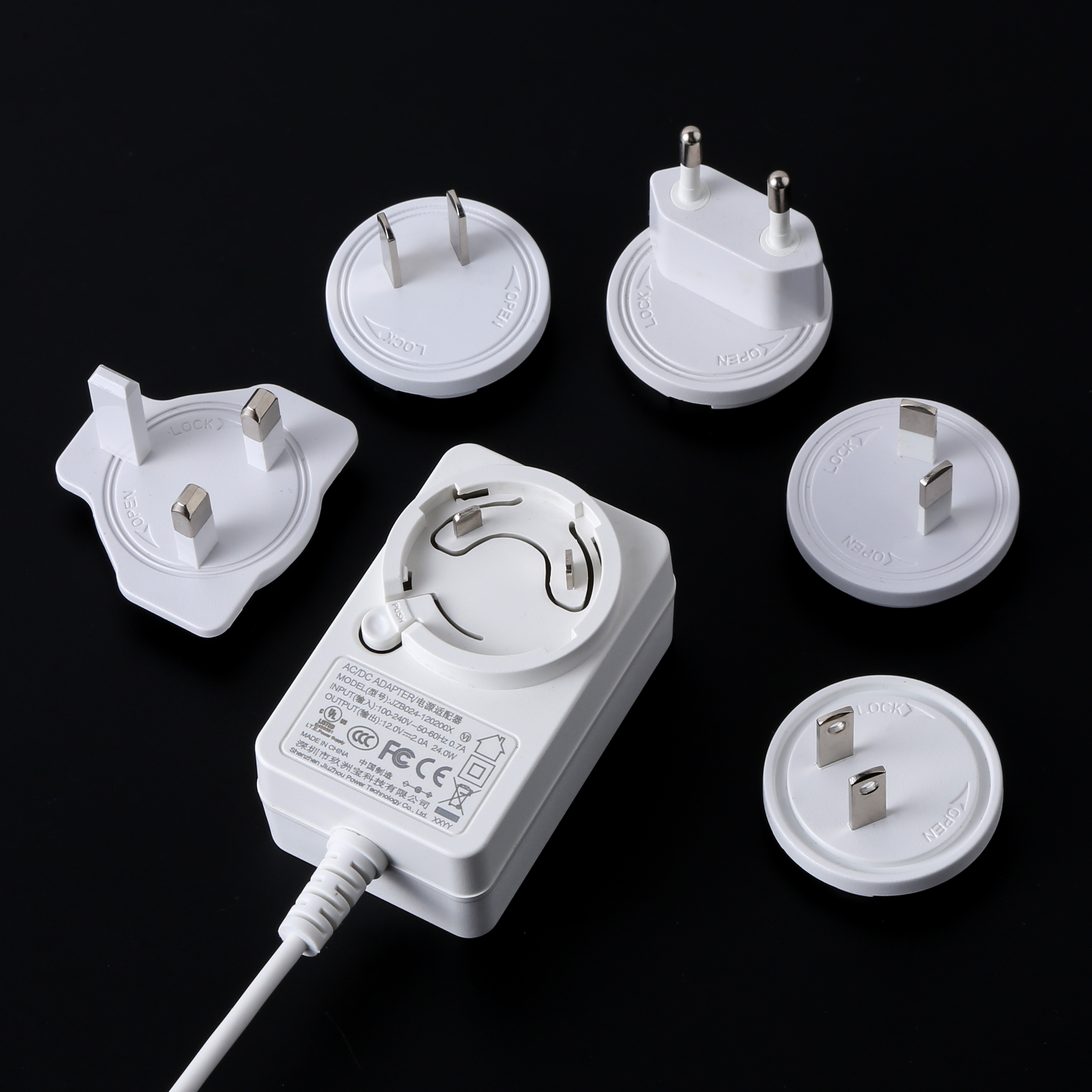

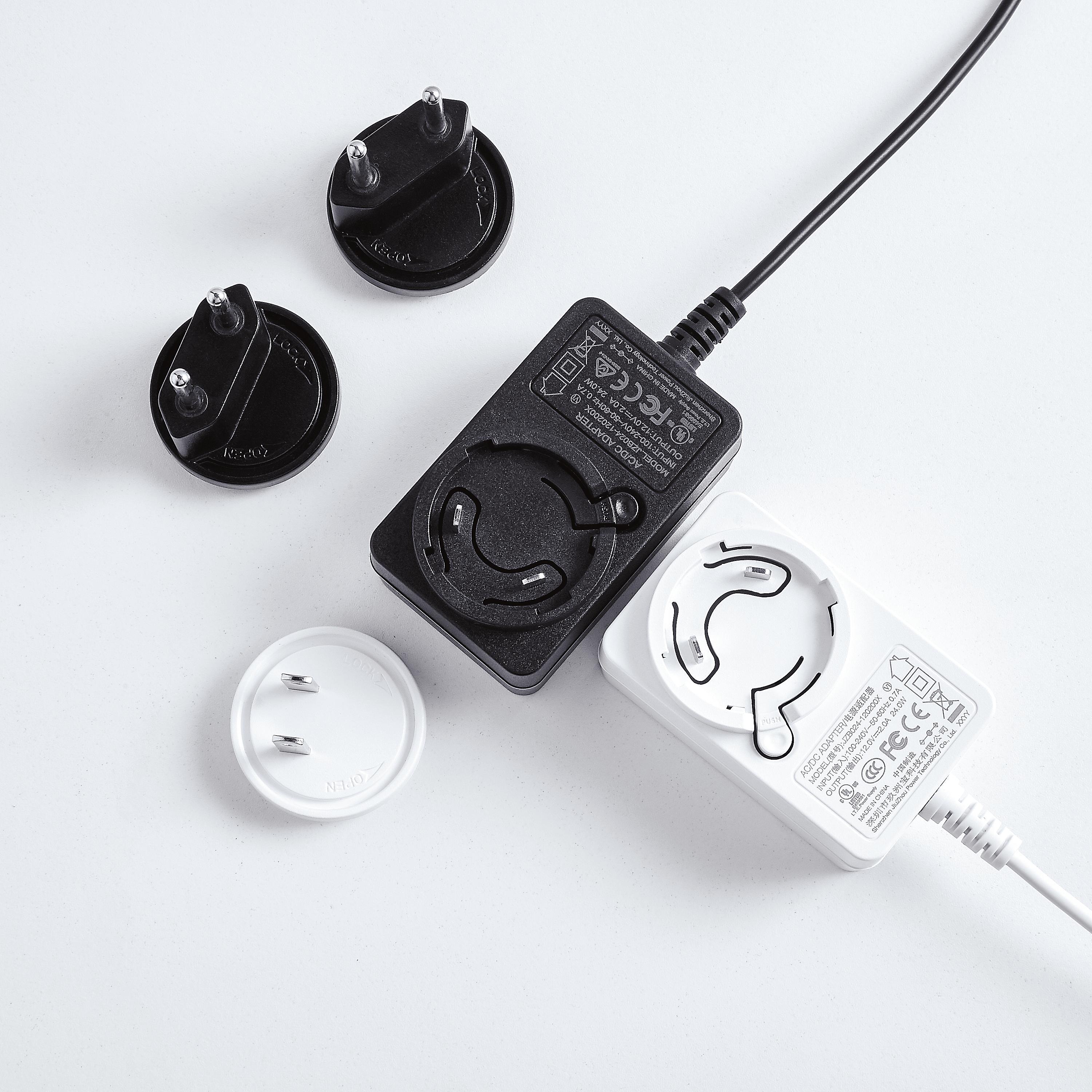

Product picture:：
| Rated Voltage | Variation Range | Rated Frequency | Variation Frequency | |||||||||||
| 100-240Vac | 90-264Vac | 50/60Hz | 47-63Hz | |||||||||||
|
(Input Current): AC current 1.0A max At input rated voltage with output full load. （Inrush Current）: In rated load, 25℃ ambient temperature,Cold-state starting at 240Vac input, Inrush Current 50 Amps Max. 输出功率： |
||||||||||||||
|
Voltage |
Min. Load |
Max. Load |
Output Power |
||||||||
| 12.0Vdc | 0A | 2.0A | 24.0W |
| （Output voltage range）: | |||||||||||
| (Load) | （No-load） | （Full load） | |||||||||
| (Current) | 0A | 2.0A | |||||||||
| (Voltage) | 11.4-12.6Vdc | 11.4-12.6Vdc | |||||||||
| （Certified） | （Standard） | |||||||||||||
| UL | UL62368 | |||||||||||||
| FCC | FCC Part 15 | |||||||||||||
| CE/UKCA | EN62368 | |||||||||||||
| EMC | EN55032 EN55024 EN55035 | |||||||||||||
| SAA | AS/NZS 62368 | |||||||||||||
| KC | K62368 | |||||||||||||
| PSE | J62368 | |||||||||||||
| EMC | J55032 | |||||||||||||

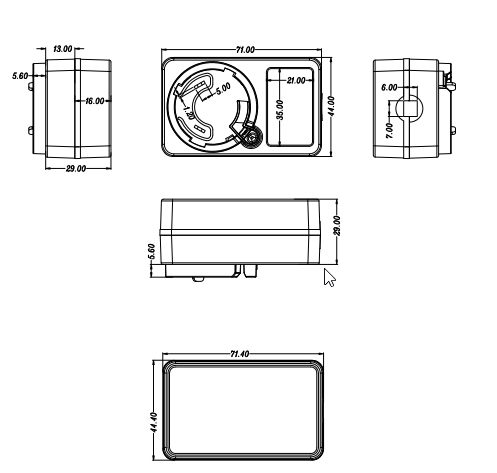

Product size：
