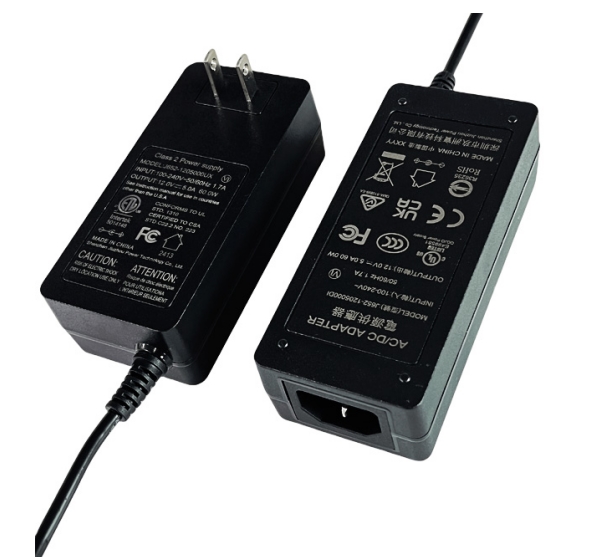

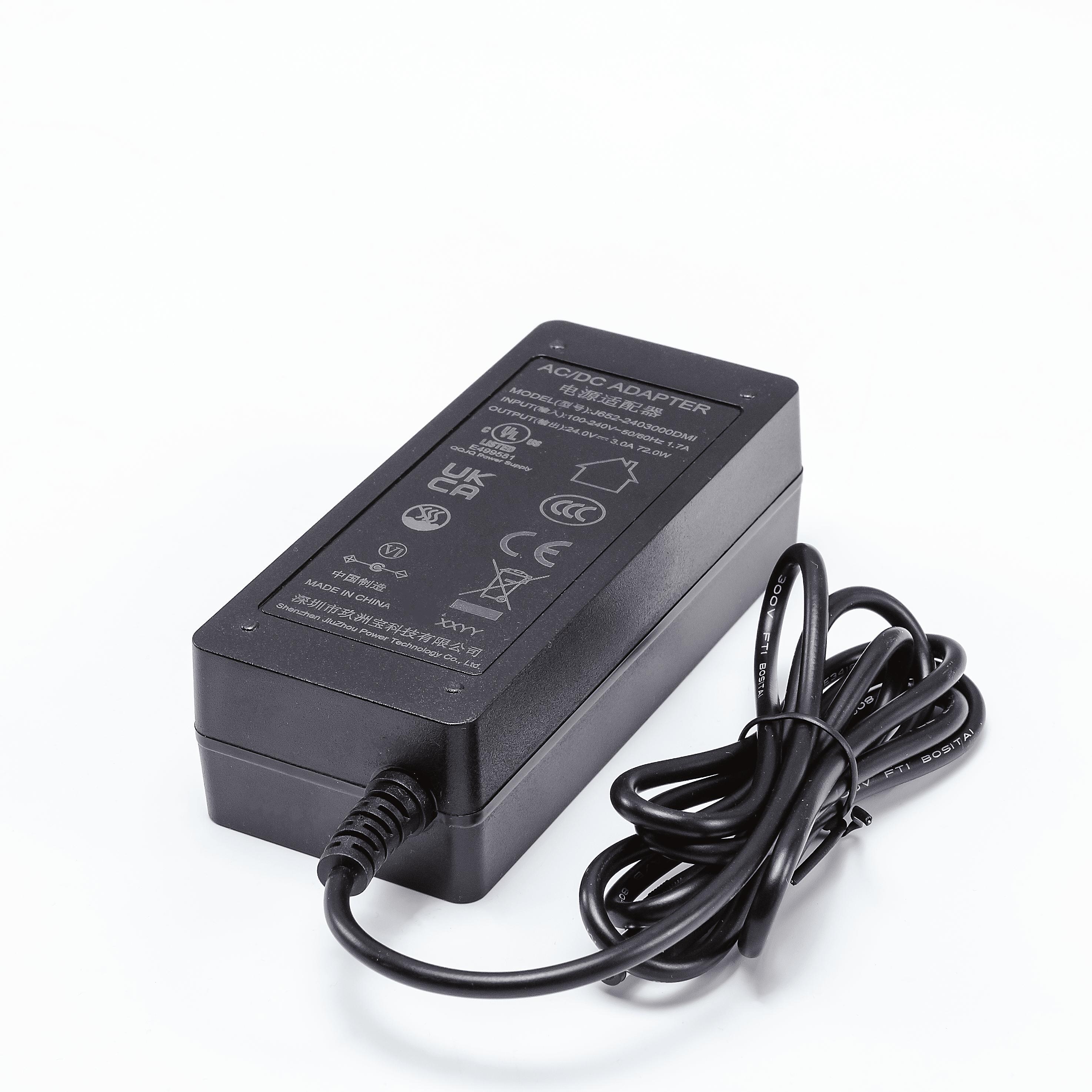

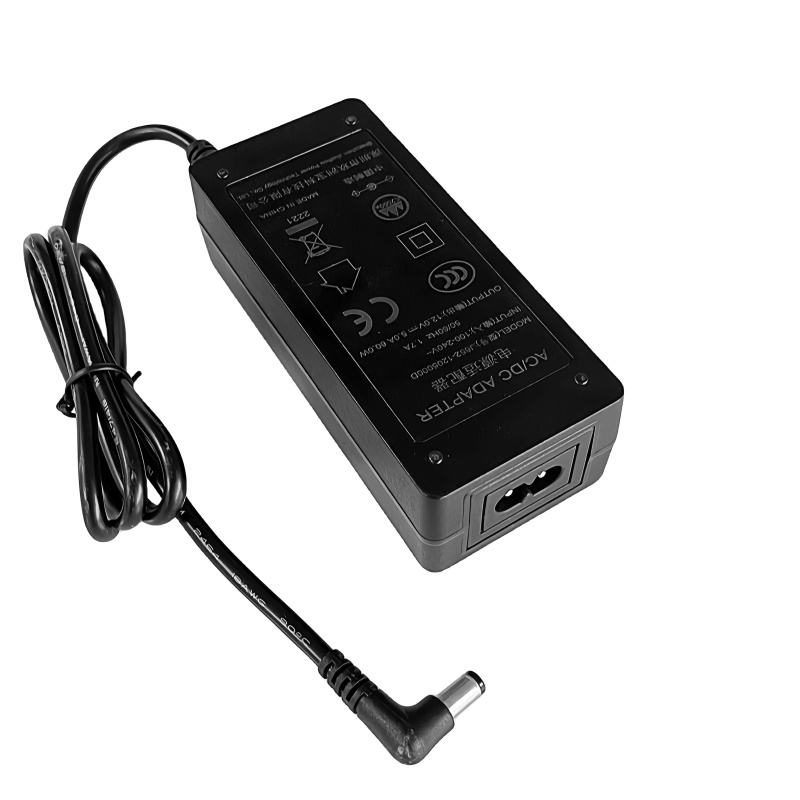

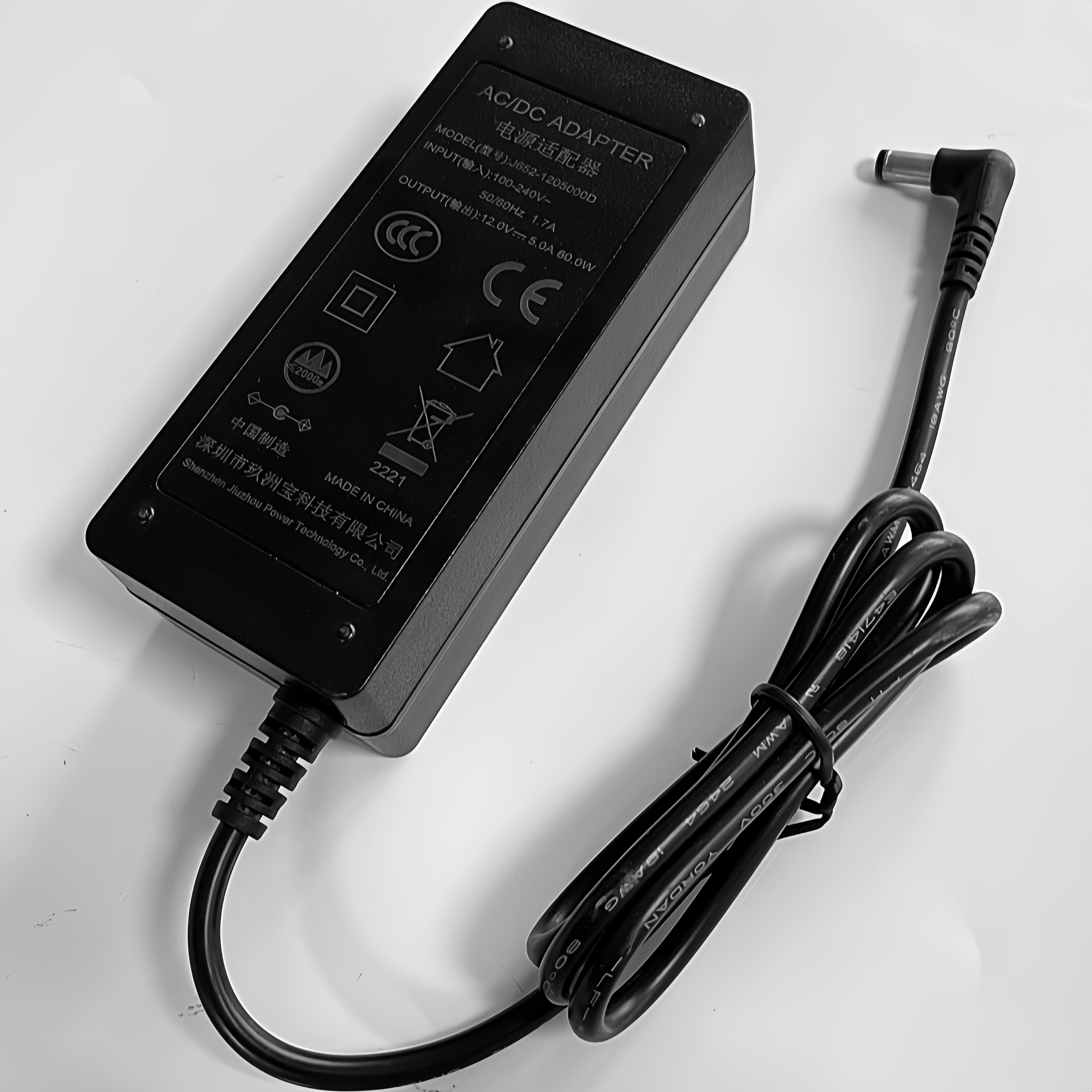

Product picture：
| （Input Voltage and Frequency）： | ||||||||||||||
| Rated Voltage | Variation Range | Rated Frequency | Variation Frequency | |||||||||||
| 100-240Vac | 90-264Vac | 50/60Hz | 47-63Hz | |||||||||||
| （Power Output）： | |||||||||||
|
Voltage |
Min. Load |
Max. Load |
Output Power |
||||||||
| 12.0Vdc | 0A | 5.0A | 60.0W | ||||||||
| （Output voltage range）: | |||||||||||
| (Load) | No-load） | Full load） | |||||||||
| Current) | 0A | 5.0A | |||||||||
| (Voltage) | 11.4-12.6Vdc | 11.4-12.6Vdc | |||||||||
| （Certified） | （Standard） | |||||||||||||
| CCC | GB4943 | |||||||||||||
| EMC | GB/T9254 GB17625 | |||||||||||||

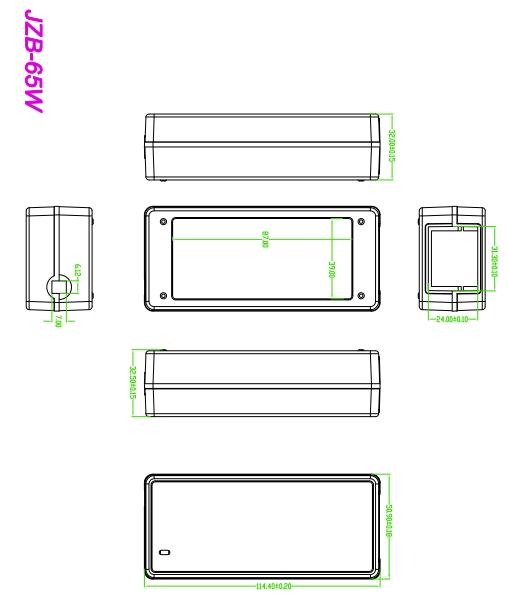

Product size drawing
