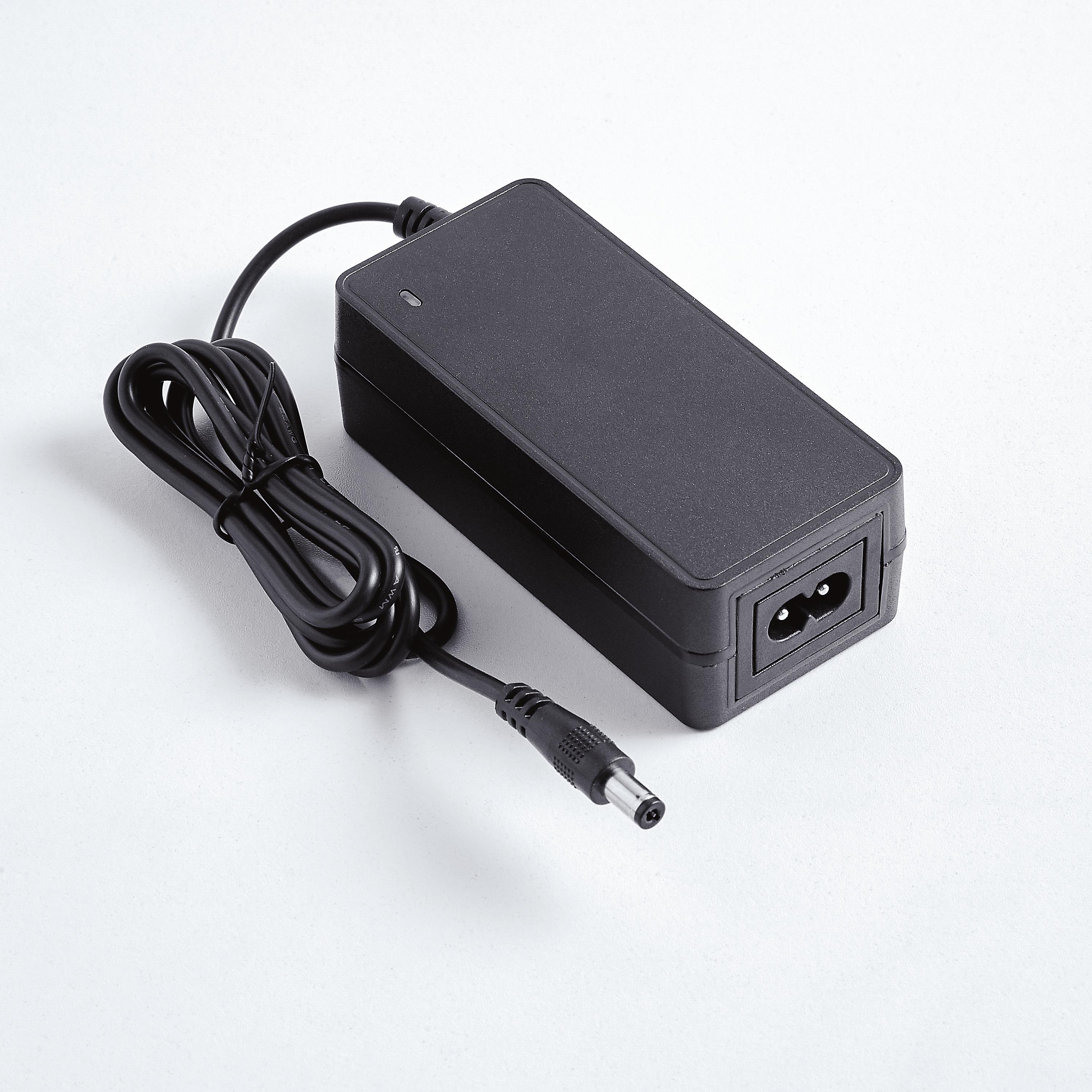

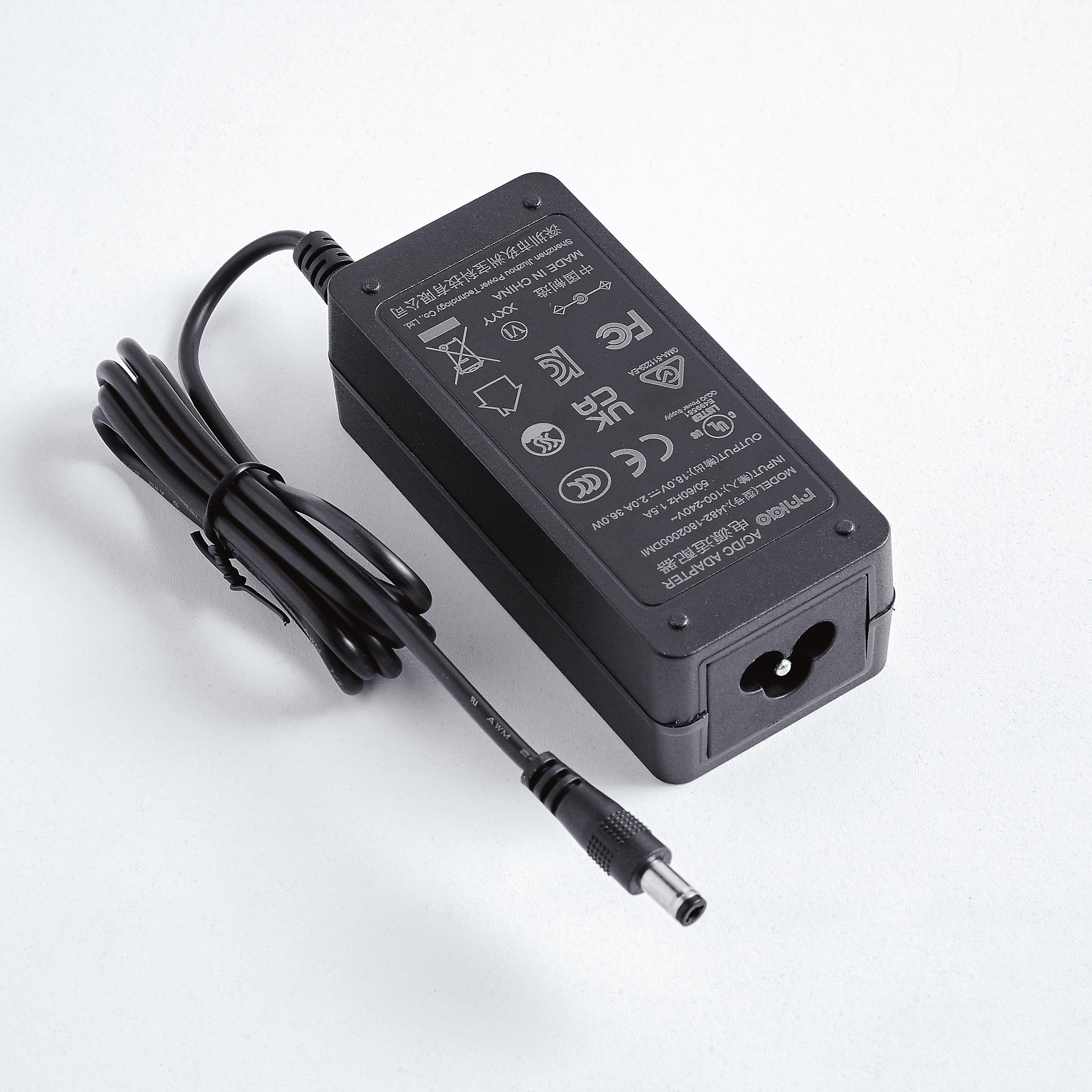

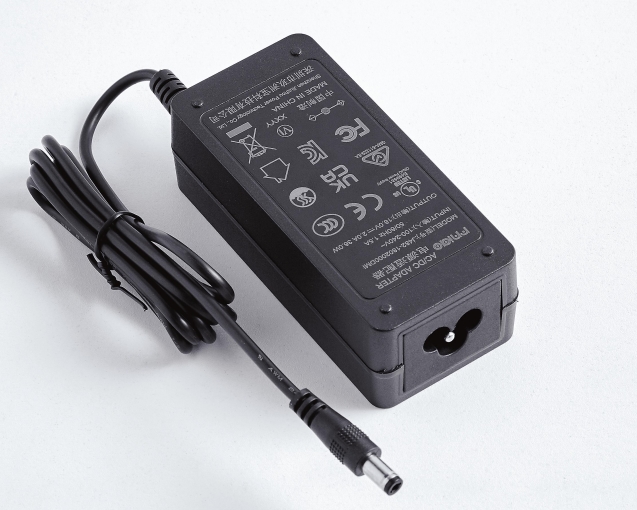

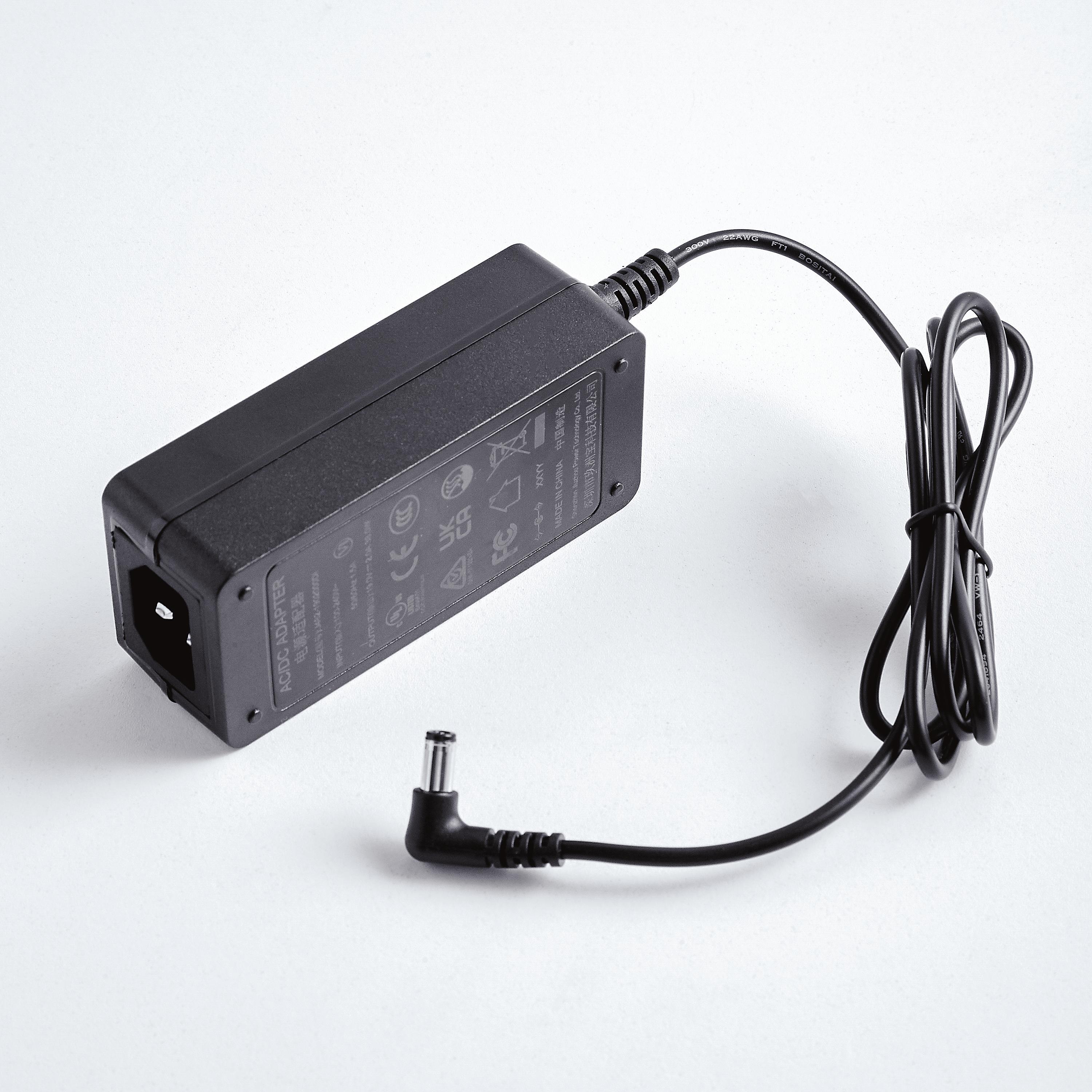

Product picture:
| （Input Voltage and Frequency）： | ||||||||||||||
| Rated Voltage | Variation Range | Rated Frequency | Variation Frequency | |||||||||||
| 100-240Vac | 90-264Vac | 50/60Hz | 47-63Hz | |||||||||||
| （Power Output）： | |||||||||||
|
Voltage |
Min. Load |
Max. Load |
Output Power |
||||||||
| 12.0Vdc | 0A | 4.0A | 48.0W | ||||||||
| （Output voltage range）: | |||||||||||
| (Load) | （No-load） | （Full load） | |||||||||
| (Current) | 0A | 4.0A | |||||||||
| (Voltage) | 11.4-12.6Vdc | 11.4-12.6Vdc | |||||||||
| （Certified） | （Standard） | |||||||||||||
| UL | UL62368-1-14 | |||||||||||||
| FCC | FCC Part 15 | |||||||||||||
| CE/UKCA | EN62368-1：2014+A11:2017 | |||||||||||||
| EMC | EN55032 EN55024 EN55035 | |||||||||||||
| SAA | AS/NZS 62368.1:2018 | |||||||||||||
| EMC | C-Tick AS/NZS CISPR32:2015 | |||||||||||||

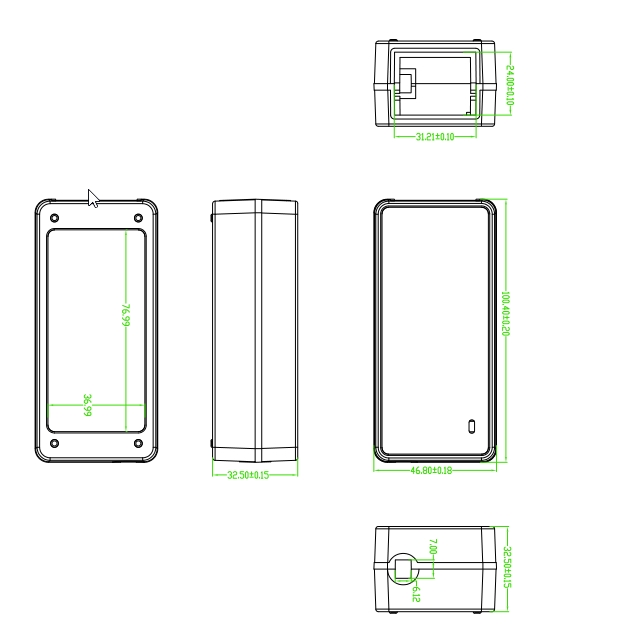

Product size drawing:
